Boom Hitch

Secure a rope to an object for parallel or right angle strain application

Written by Binod Gautam

Published on:

The Boom Hitch is used to attach a rope to a sail boom or any fixed object.

It’s not mentioned in the Ashley Book of Knots under the same name but is listed as “Decorative Hitch.”

It handles tension well for both parallel and right angle strain applications. Plus, it works well on slippery surfaces like steel pipes.

Let’s learn it in detail.

Boom Hitch Knot Details

Type: Hitch

Other Names: Decorative Hitch

ABoK Reference: #1687

How to Tie a Boom Hitch Knot

The Boom hitch is an easy knot to tie.

To tie the Boom Hitch, just tie the first three turns on top of the previous turns and the final turn is tucked under.

Once the single tuck has been made, work out any slack in the hitch.

Step-by-step guide:

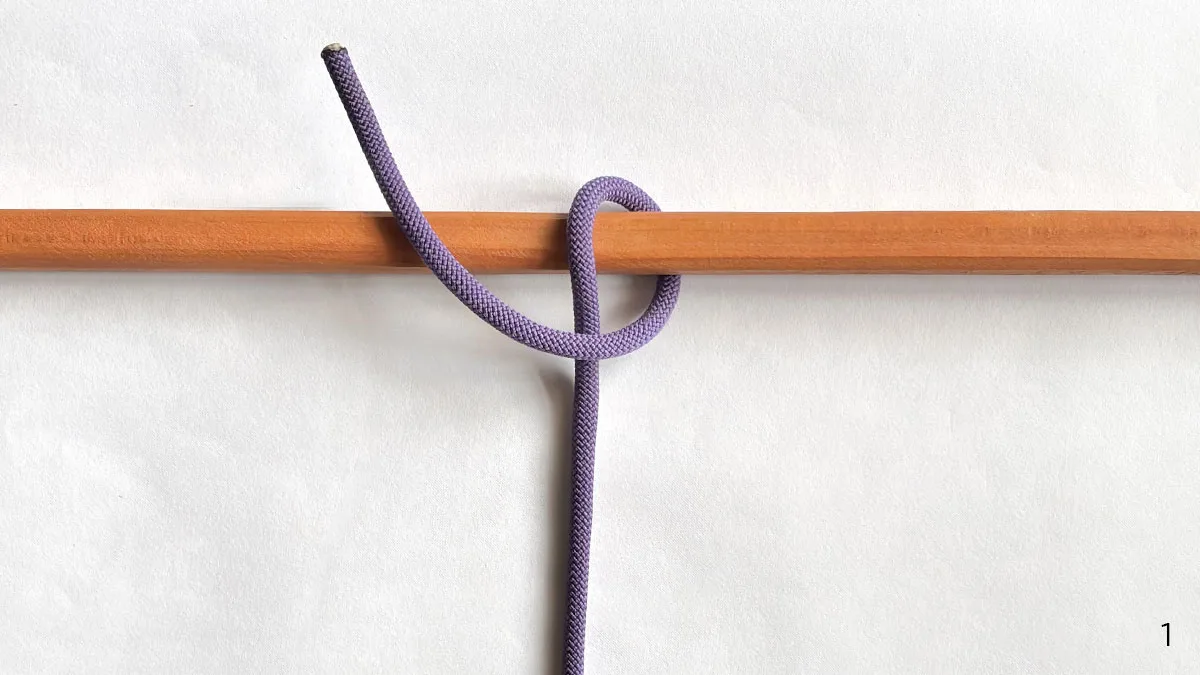

  1. Pass the working end of the rope over the post, wrap it behind and bring it over the standing end in the front.

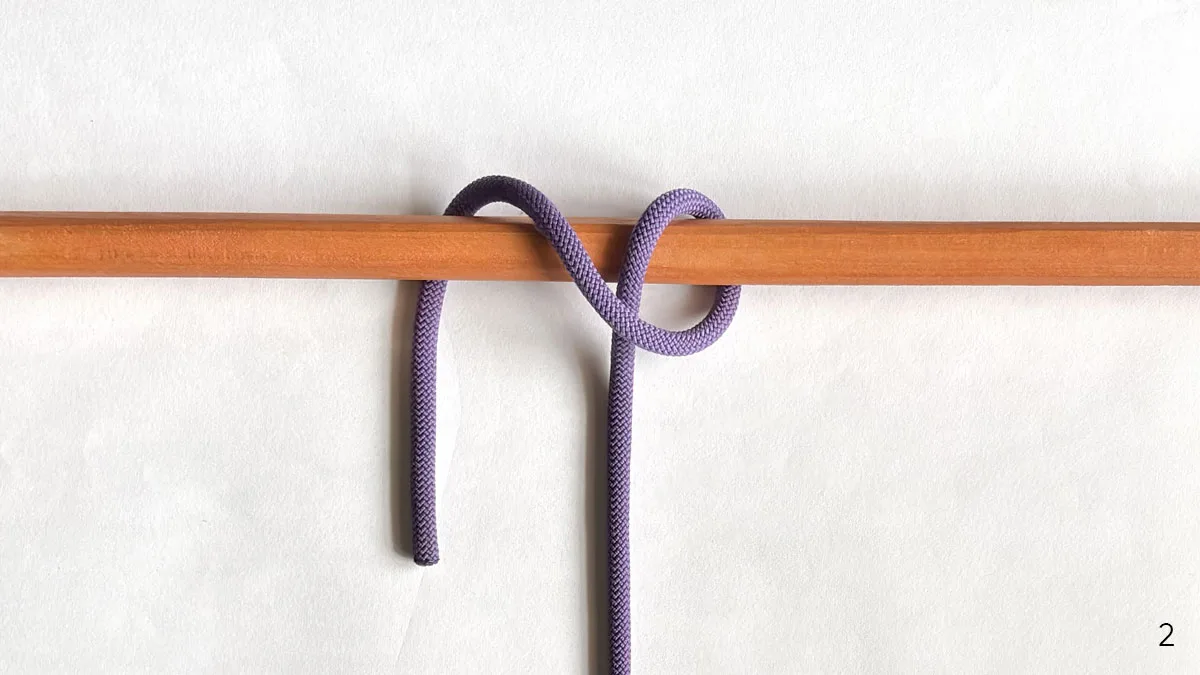

  2. Bring the working end from front to back and pass it between two existing knot parts.

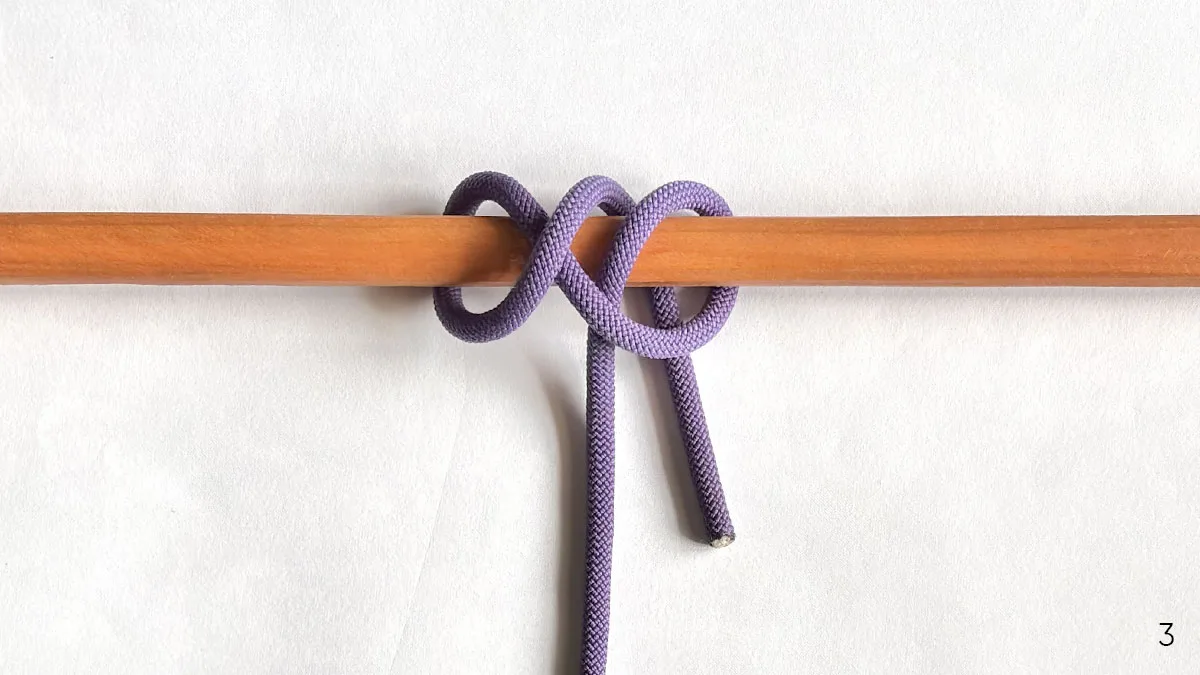

  3. Cross the working end over the front of the standing line and wrap it diagonally over the post.

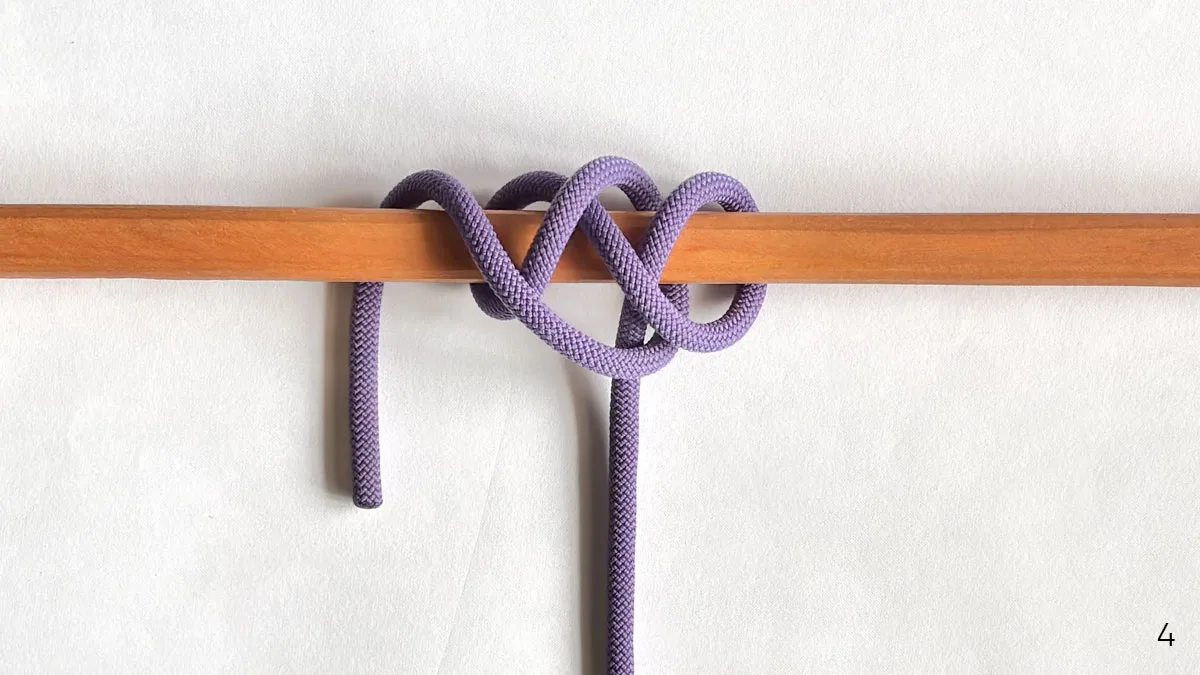

  4. Bring the working end to the front and feed it under the previous wrap.

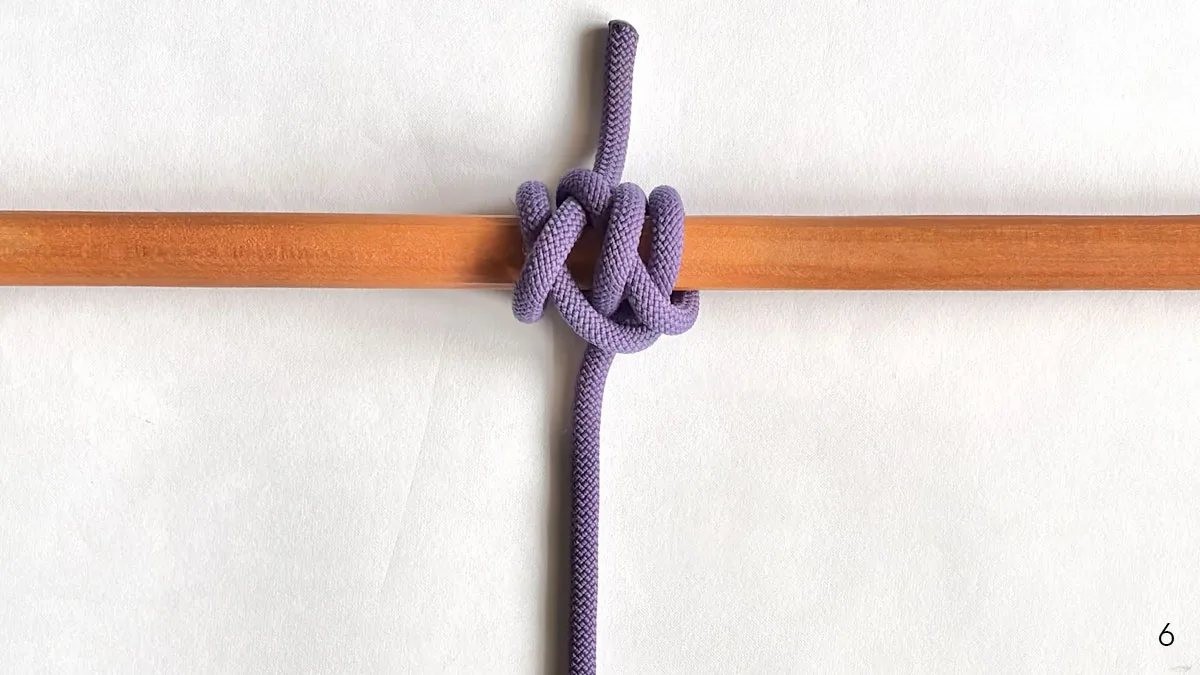

  5. Tighten the knot.

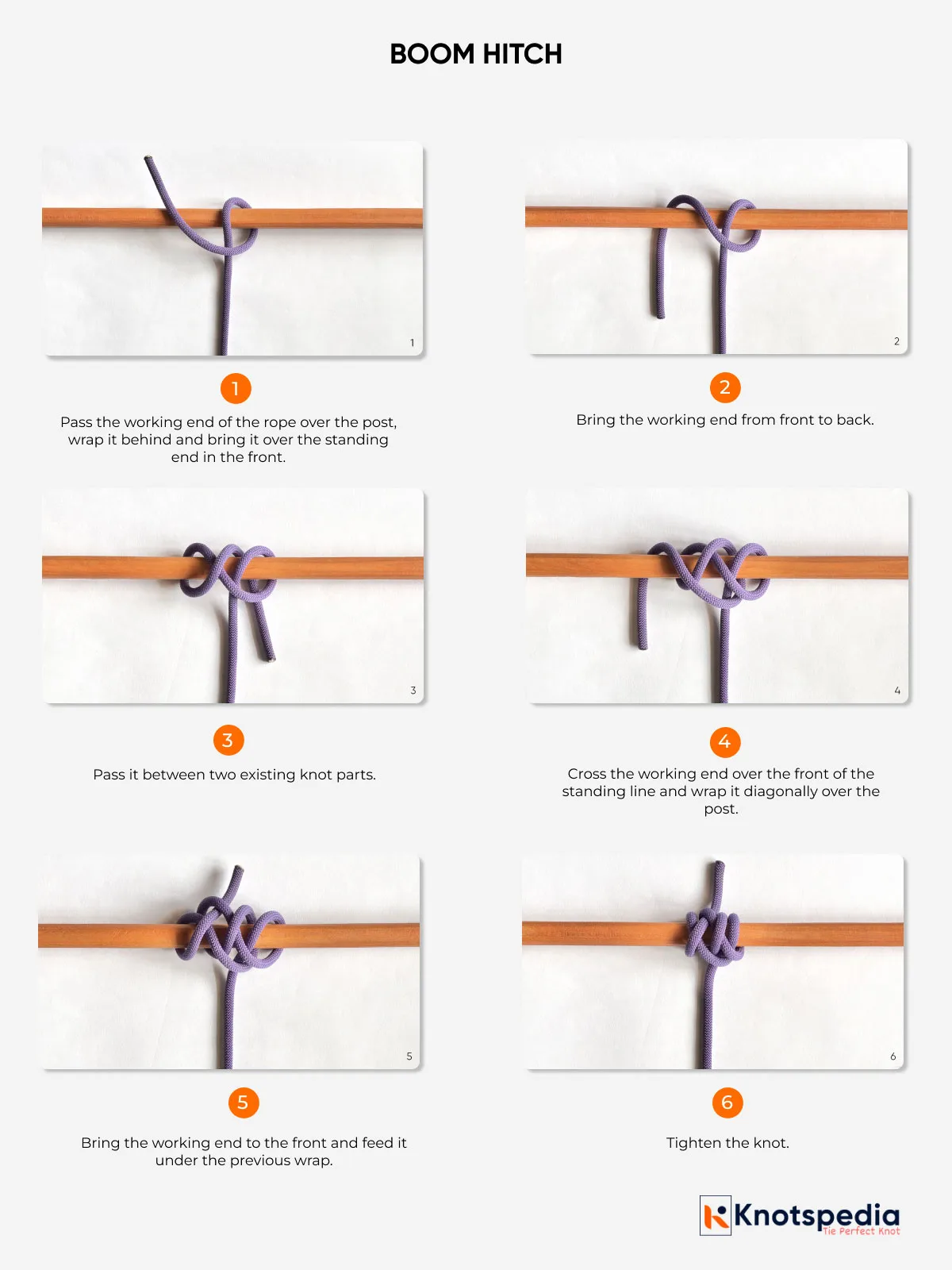

BOOM-HITCH-STEP-BY-STEP
Image: Boom Hitch Step by Step

Tightening Tips

There is where people mess up—not tightening the knot right.

Remove any slack in the knot by pulling the individual wraps tight and close together but maintain their position.

Make sure you do not disturb the sequence of wraps.

Pro TIP

Want extra security?

Add an Overhand stopper knot at the end of the free end so it won’t slip through the hitch.

If you need a quick release version, just finish the hitch with a bight in the last step instead of feeding the tag end.

Application and Uses

The Boom Hitch is used in a variety of applications where a secure knot is required to attach the rope to an object or foundation.

It handles heavy and shock loads and can be used for critical applications as well.

One of the best uses? Securing one end of the rope before tying down a load with the Trucker’s Hitch.

Pros and Cons

Pros

  • Easy to tie and remember
  • Works on wet or dry surfaces
  • Easy to untie and does not jam
  • Handles high and shock loads

Cons

  • Requires more rope length

Liked the article? Share it or Bookmark it for further reference!
